Nginx: Reverse Proxy, Load Balancing and SSL Configuration

Introduction

Stop copying nginx configs from Stack Overflow. Many were written for long-outdated nginx versions, and plenty skip basic security settings. Here's how to actually understand what you're configuring.

Most people need three things from Nginx: reverse proxy their app, terminate TLS, and serve static files without burning backend CPU. Everything else — caching, rate limiting, load balancing — is situational. But those three? Non-negotiable for any production deploy. And most people get at least one of them wrong because they never learned how Nginx actually processes a request.

So that is where we start. The mental model first, then the configs.

Nginx Architecture and Configuration Files

Nginx processes a request through a hierarchy. A request comes in. Nginx looks at the Host header and matches it against server_name directives across all server blocks. That picks the server block. Within the block, the URI gets matched against location directives — exact matches first, then prefix matches, then regex. Whichever location wins gets to handle the request. Directives set at the http level cascade down into server blocks, which cascade down into location blocks, unless explicitly overridden. Once you see this tree structure, most confusing Nginx behavior stops being confusing.

The architecture under the hood: one master process, a handful of worker processes (one per CPU core), and each worker handles thousands of connections through an event loop. Not a thread-per-connection model like Apache. A few megabytes of memory for thousands of concurrent connections.

Config file lives at /etc/nginx/nginx.conf.

user www-data;
worker_processes auto;
pid /run/nginx.pid;
error_log /var/log/nginx/error.log warn;

events {
    worker_connections 1024;
    multi_accept on;
    use epoll;
}

http {
    include /etc/nginx/mime.types;
    default_type application/octet-stream;

    # Logging format
    log_format main '$remote_addr - $remote_user [$time_local] "$request" '
                    '$status $body_bytes_sent "$http_referer" '
                    '"$http_user_agent" "$http_x_forwarded_for"';
    access_log /var/log/nginx/access.log main;

    # Performance
    sendfile on;
    tcp_nopush on;
    tcp_nodelay on;
    keepalive_timeout 65;

    # Include site configurations
    include /etc/nginx/conf.d/*.conf;
    include /etc/nginx/sites-enabled/*;
}

worker_processes auto spawns one worker per CPU core. Leave it. The events block controls connection handling. use epoll picks the fastest event notification mechanism on Linux. Everything web-related lives inside the http block, and the include lines at the bottom pull in per-site configs from separate files.

You create config files in /etc/nginx/sites-available/ and symlink the ones you want active into /etc/nginx/sites-enabled/. Disabling a site is just removing the symlink.

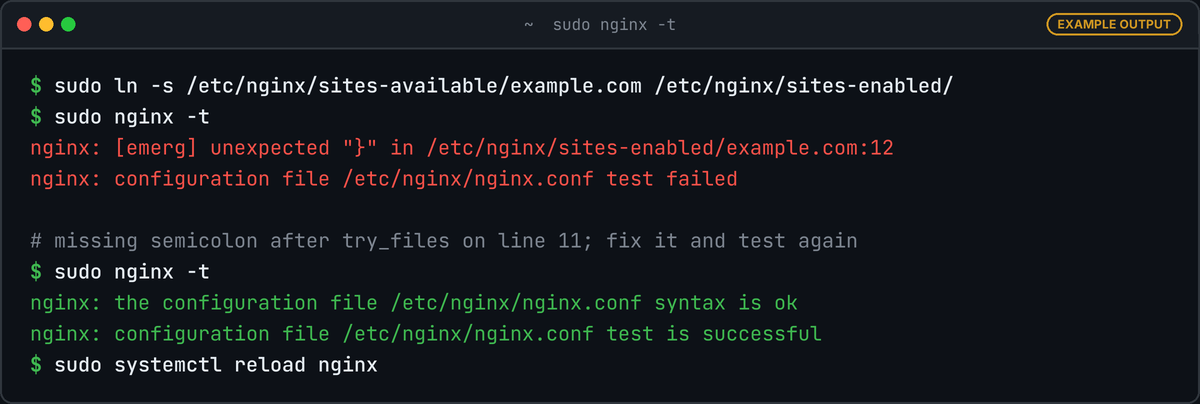

And before you reload anything: sudo nginx -t.

Always.

Every site on the machine shares one configuration. A syntax error in any file makes nginx -t fail and blocks reloads for all of them. On a restart or reboot, nginx refuses to start at all, and every site goes down, not just the one you changed.

Server Blocks and Virtual Hosts

One Nginx instance, multiple domains. Each server block defines a domain, a document root, and the rules for that domain's requests. Apache calls them virtual hosts.

server {
    listen 80;
    listen [::]:80;
    server_name example.com www.example.com;

    root /var/www/example.com/html;
    index index.html index.htm;

    # Main location block
    location / {
        try_files $uri $uri/ =404;
    }

    # Custom error pages
    error_page 404 /404.html;
    error_page 500 502 503 504 /50x.html;

    # Static asset caching
    location ~* \.(css|js|jpg|jpeg|png|gif|ico|svg|woff2)$ {
        expires 30d;
        add_header Cache-Control "public, immutable";
    }

    # Deny access to hidden files
    location ~ /\. {
        deny all;
        access_log off;
        log_not_found off;
    }
}

Nothing to explain here that the config does not already say. listen 80 on IPv4 and IPv6. server_name matches the Host header. try_files tries the URI as a file, then a directory, then 404. Static asset caching on common extensions. Deny hidden files. Symlink it into sites-enabled and reload.

A common mistake: try_files makes perfect sense for static sites, but people leave it in when they switch to a reverse proxy setup. Then requests that should hit your backend get 404'd by Nginx before they ever reach your app.

A reload with bad syntax will not crash the running server. It will silently keep the old configuration. Which leads to twenty minutes of "why aren't my changes working" before you check the error log.

Reverse Proxy Configuration

Your Node.js app on port 3000 should not face the public internet. Neither should your Django app on 8000 or your Go binary on 8080.

Nginx buffers slow clients so your app threads are not sitting idle waiting on a phone with bad cell signal to finish uploading a request body. You get TLS termination in one place, centralized logging, rate limiting, and horizontal scaling — add more app servers behind the same Nginx instance later. But honestly, the biggest reason is that application servers are terrible at handling raw internet traffic. They were not built for it. Nginx was.

# In the http context (site files are included there). Sends Connection: upgrade
# only for WebSocket requests and an empty Connection header otherwise.
map $http_upgrade $connection_upgrade {
    default upgrade;
    ''      '';
}

upstream node_backend {
    server 127.0.0.1:3000;
    keepalive 32;
}

server {
    listen 80;
    server_name myapp.com www.myapp.com;

    # Proxy settings
    location / {
        proxy_pass http://node_backend;
        proxy_http_version 1.1;

        # Required headers for proper proxying
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;

        # WebSocket support
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection $connection_upgrade;

        # Timeouts
        proxy_connect_timeout 60s;
        proxy_send_timeout 60s;
        proxy_read_timeout 60s;

        # Buffering
        proxy_buffering on;
        proxy_buffer_size 4k;
        proxy_buffers 8 4k;
    }

    # Serve static files directly (bypass proxy)
    location /static/ {
        alias /var/www/myapp/static/;
        expires 30d;
        # Any add_header here replaces add_header lines inherited from server {}
        add_header Cache-Control "public, immutable";
    }
}

If you've seen one proxy_pass, you've seen them all. The interesting part here is the upstream block — use it even with a single backend, because keepalive 32 enables connection pooling. Without it, Nginx opens a fresh TCP connection for every request. With it, connections get reused. And adding a second backend later is one line.

The proxy_set_header lines are the part people forget. Without X-Real-IP and X-Forwarded-For, your app sees every request coming from 127.0.0.1. Useless for logging. Useless for rate limiting. X-Forwarded-Proto tells your app whether the original request was HTTP or HTTPS — get this wrong and your redirects will loop forever.

The WebSocket headers (Upgrade and Connection) are there because you will need them. Hot module reloading, Socket.io, any real-time feature — dead without them. And Nginx gives zero useful error output when they are missing. Just a silent dropped connection.

The map matters because of the keepalive pool. Hard-coding Connection "upgrade" sends that header on every request, so ordinary requests cannot reuse pooled upstream connections. With $connection_upgrade, WebSocket handshakes get upgrade and everything else gets an empty Connection header, which is what keepalive needs.

Load Balancing Strategies

Open-source nginx ships several balancing methods. Three cover most setups.

Round-robin (the default) cycles through servers. Fine when your backends are roughly equivalent hardware. Least connections sends each request to whichever server has the fewest active connections right now — if one endpoint takes 50ms and another takes several seconds, round-robin creates hotspots, but least-conn adapts. IP hash routes the same client IP to the same backend every time. Sticky sessions without external state. The downside: clients behind a shared NAT all look like one IP, so distribution gets lopsided. Two more exist when you need them: hash with any key you choose (for example hash $request_uri consistent; for cache-friendly routing) and random, optionally random two least_conn;.

# Round-robin with weighted servers
upstream app_cluster {
    server 10.0.1.10:3000 weight=3;  # gets 3x traffic
    server 10.0.1.11:3000 weight=2;  # gets 2x traffic
    server 10.0.1.12:3000 weight=1;  # gets 1x traffic
    server 10.0.1.13:3000 backup;    # only used if others fail

    keepalive 64;
}

# Least connections strategy
upstream api_cluster {
    least_conn;
    server 10.0.2.10:8080 max_fails=3 fail_timeout=30s;
    server 10.0.2.11:8080 max_fails=3 fail_timeout=30s;
    server 10.0.2.12:8080 max_fails=3 fail_timeout=30s;
    keepalive 32;
}

# IP hash for session persistence
upstream session_cluster {
    ip_hash;
    server 10.0.3.10:5000;
    server 10.0.3.11:5000;
    server 10.0.3.12:5000;
}

server {
    listen 80;
    server_name app.example.com;

    location / {
        proxy_pass http://app_cluster;
        proxy_http_version 1.1;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header Connection "";

        # Retry on failure
        proxy_next_upstream error timeout http_502 http_503;
        proxy_next_upstream_tries 3;
    }

    location /api/ {
        proxy_pass http://api_cluster;
        proxy_http_version 1.1;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header Connection "";
    }
}

weight when your servers are not identical. An 8-core machine should get more traffic than a 4-core one. backup is the last resort — only receives requests when every other server in the group is down.

max_fails and fail_timeout handle passive health checking. Three errors in 30 seconds and Nginx pulls that server from rotation. Not as good as active health checks (Nginx Plus territory), but sufficient.

proxy_next_upstream is the part that actually saves your users. First backend returns a 502? Nginx retries on a different server. They never see it. But cap proxy_next_upstream_tries or a cascade of failing backends turns into an avalanche of retry traffic that makes everything worse.

SSL/TLS with Let's Encrypt

No TLS, no deploy.

Install Certbot: sudo apt install certbot python3-certbot-nginx. Get a certificate: sudo certbot --nginx -d example.com -d www.example.com. Certbot modifies your Nginx config automatically. But its defaults prioritize compatibility over security, so here is what each directive in a hardened config actually does. HTTP/2 is now switched on with its own http2 on; directive. The old listen 443 ssl http2; form is deprecated since nginx 1.25.1 and logs a warning.

ssl_protocols TLSv1.2 TLSv1.3 drops TLS 1.0 and 1.1, which have been officially deprecated since 2021 and have known vulnerabilities. No reason to support them. The cipher list prioritizes ECDHE ciphers for forward secrecy: even if your private key leaks in the future, past traffic stays encrypted. ssl_session_cache shared:SSL:10m lets workers share TLS session data so returning visitors skip the full handshake. You may see ssl_stapling on; in older guides. Skip it with Let's Encrypt: the CA removed OCSP URLs from new certificates in May 2025 and shut down its OCSP responders in August 2025, so nginx has nothing to staple and just logs a warning. Revocation now works through CRLs, with no server config needed. Stapling is still useful with CAs that run OCSP. And Strict-Transport-Security with the preload flag tells browsers to always use HTTPS, even if the user types http://. Be careful with this one. Once you are on the preload list, removing your domain takes months.

# Redirect all HTTP traffic to HTTPS
server {
    listen 80;
    listen [::]:80;
    server_name example.com www.example.com;
    return 301 https://$server_name$request_uri;
}

server {
    listen 443 ssl;
    listen [::]:443 ssl;
    http2 on;  # nginx 1.25.1+; older versions use "listen 443 ssl http2;"
    server_name example.com www.example.com;

    # Certificate files (managed by Certbot)
    ssl_certificate /etc/letsencrypt/live/example.com/fullchain.pem;
    ssl_certificate_key /etc/letsencrypt/live/example.com/privkey.pem;

    # TLS protocol and cipher configuration
    ssl_protocols TLSv1.2 TLSv1.3;
    ssl_ciphers ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-GCM-SHA384;
    ssl_prefer_server_ciphers off;

    # SSL session caching for performance
    ssl_session_cache shared:SSL:10m;
    ssl_session_timeout 1d;
    ssl_session_tickets off;

    # No ssl_stapling: Let's Encrypt certificates no longer include an OCSP URL.
    # Only enable stapling if your CA still runs an OCSP responder.

    # HSTS (force browsers to use HTTPS for 1 year)
    add_header Strict-Transport-Security "max-age=31536000; includeSubDomains; preload" always;

    # ... your location blocks go here
}

Let's Encrypt certificates currently last 90 days, and the CA has announced shorter lifetimes from February 2027, so automated renewal is not optional. Certbot installs a systemd timer for it. Verify with sudo certbot renew --dry-run and forget about it.

Caching and Compression

Two wins that stack. Caching stores backend responses in Nginx so repeat requests never touch your application. Compression shrinks what goes over the wire.

# Define cache zone in the http block
proxy_cache_path /var/cache/nginx
    levels=1:2
    keys_zone=app_cache:10m
    max_size=1g
    inactive=60m
    use_temp_path=off;

server {
    # ... SSL and server_name config ...

    # Gzip compression
    gzip on;
    gzip_vary on;
    gzip_proxied any;
    gzip_comp_level 5;
    gzip_min_length 256;
    gzip_types
        text/plain
        text/css
        text/javascript
        application/json
        application/javascript
        application/xml
        application/xml+rss
        image/svg+xml;

    # Proxy caching for API responses
    location /api/ {
        proxy_pass http://node_backend;
        proxy_cache app_cache;
        proxy_cache_valid 200 10m;
        proxy_cache_valid 404 1m;
        proxy_cache_use_stale error timeout updating
                              http_500 http_502 http_503 http_504;
        proxy_cache_lock on;

        # Never store or serve cached responses for requests carrying credentials
        proxy_no_cache $http_authorization $cookie_session;
        proxy_cache_bypass $http_authorization $cookie_session;

        # Cache key based on request URI
        proxy_cache_key "$scheme$request_method$host$request_uri";

        # Add cache status header for debugging
        add_header X-Cache-Status $upstream_cache_status;

        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
    }

    # Skip cache for authenticated requests
    location /api/user/ {
        proxy_pass http://node_backend;
        proxy_cache_bypass 1;
        proxy_no_cache 1;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
    }
}

proxy_cache_use_stale is the part that matters most here. Backend goes down? Nginx serves the last cached response instead of an error page. Your app is dead but your users still see something useful. proxy_cache_lock prevents the thundering herd — cache expires, a hundred requests arrive, only one goes to the backend. The other ninety-nine wait.

On gzip: a mid-range gzip_comp_level like 5 is a common choice. Higher levels cost more CPU per response for small extra savings on typical text. Measure on your own responses before raising it. gzip_min_length of 256 bytes avoids compressing tiny responses where the gzip overhead actually makes them larger. Only text-based MIME types. Gzipping a JPEG or a WOFF2 font wastes CPU and changes nothing, because both are already compressed.

Be careful with what you cache under /api/. A shared cache is only safe for responses that are the same for every user. nginx will not cache a response that sets a cookie, and it respects the backend's Cache-Control and Expires headers. But a per-user JSON response without those headers would be cached and served to the next visitor. The proxy_no_cache and proxy_cache_bypass lines skip the cache whenever a request carries an Authorization header or a session cookie (rename $cookie_session to match your cookie). Have the backend send Cache-Control: private on personal responses as well.

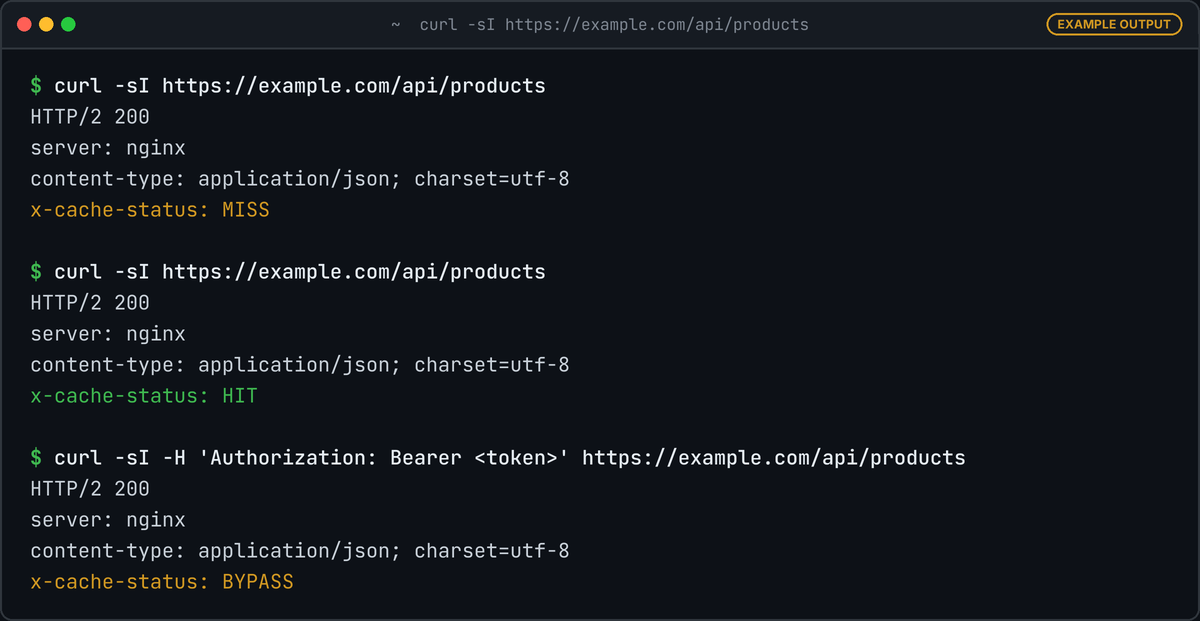

X-Cache-Status returns HIT, MISS, BYPASS, or EXPIRED. Useful in staging. Strip it in production if you do not want to leak implementation details.

Rate Limiting and Security Headers

Add these before you ship. Not after. "We'll add security later" means you will not add security.

# Define rate limit zones (in http block)
limit_req_zone $binary_remote_addr zone=general:10m rate=10r/s;
limit_req_zone $binary_remote_addr zone=login:10m rate=5r/m;
limit_req_zone $binary_remote_addr zone=api:10m rate=30r/s;

# Connection limiting
limit_conn_zone $binary_remote_addr zone=addr:10m;

server {
    # ... SSL config ...

    # Global connection limit
    limit_conn addr 100;

    # Request size limits
    client_max_body_size 10m;
    client_body_timeout 12s;
    client_header_timeout 12s;

    # Security headers
    add_header X-Frame-Options "SAMEORIGIN" always;
    add_header X-Content-Type-Options "nosniff" always;
    add_header Referrer-Policy "strict-origin-when-cross-origin" always;
    add_header Content-Security-Policy "default-src 'self'; script-src 'self'; style-src 'self' 'unsafe-inline'; img-src 'self' data: https:; font-src 'self' https://fonts.gstatic.com;" always;
    add_header Permissions-Policy "camera=(), microphone=(), geolocation=()" always;

    # Hide Nginx version
    server_tokens off;

    # General rate limit
    location / {
        limit_req zone=general burst=20 nodelay;
        proxy_pass http://node_backend;
    }

    # Strict rate limit for login endpoint
    location /auth/login {
        limit_req zone=login burst=3 nodelay;
        proxy_pass http://node_backend;
    }

    # Higher rate limit for API
    location /api/ {
        limit_req zone=api burst=50 nodelay;
        proxy_pass http://node_backend;
    }

    # Block common attack patterns
    location ~* (\.php|\.asp|\.aspx|\.jsp|\.cgi)$ {
        return 444;
    }

    # Block access to sensitive files
    location ~* (\.env|\.git|\.htaccess|\.htpasswd|wp-config) {
        return 404;  # hide that these files exist
    }
}

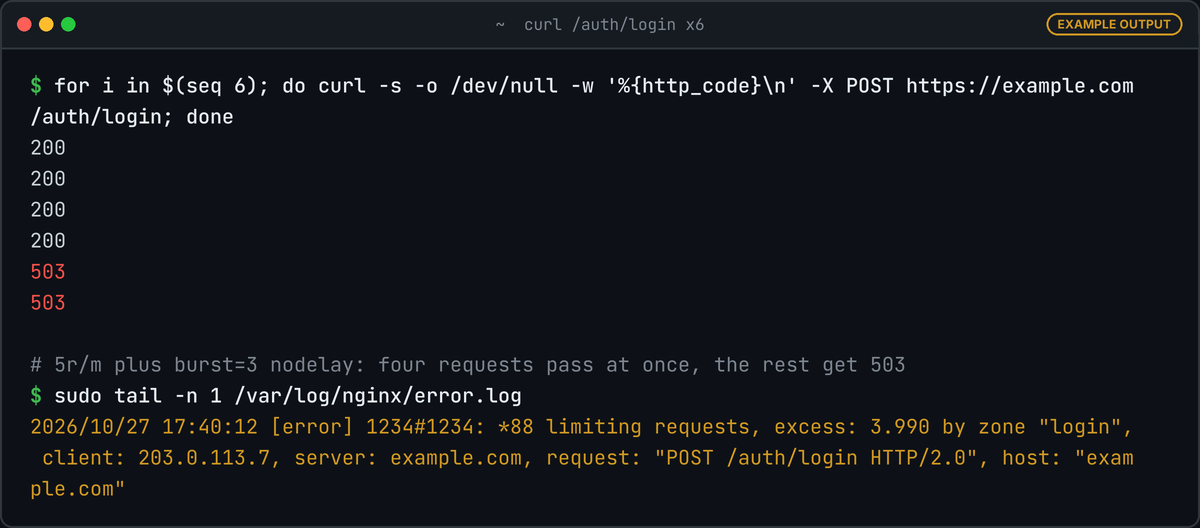

Three rate limit zones targeting different endpoints: general browsing at 10 req/s, login at 5 req/min (you do not need fast logins), and API at 30 req/s. $binary_remote_addr is the compact binary form of the client IP. Saves memory versus the string version.

Without burst, every request over the limit gets an instant 503. A browser loading a single page fires 15 parallel requests for CSS, JS, and images. That is already over a 10 req/s limit. burst=20 queues the overflow, nodelay processes them immediately. Normal browsing works. A script hammering at 100 req/s hits the wall.

Content-Security-Policy is the most important header in this block. It lists exactly which origins can serve scripts, styles, images, and fonts. Because script-src allows only 'self', with no 'unsafe-inline', an injected inline <script> tag or onclick attribute will not run. If your pages need inline scripts, allow them with nonces or hashes rather than adding 'unsafe-inline' back. It stays in style-src here as a compromise. Remove it if your CSS allows. The rest — X-Frame-Options, X-Content-Type-Options, Referrer-Policy — are one-liners that close well-known attack vectors. Just add them. X-XSS-Protection is left out on purpose: modern browsers removed the XSS filter it controlled, and OWASP recommends not setting it (or setting it to 0) and relying on CSP.

One inheritance rule catches almost everyone. add_header directives are inherited from the enclosing level only if the current level has no add_header of its own. The /static/ location above (Cache-Control) and the cached /api/ location (X-Cache-Status) each define one, so responses from those locations silently lose HSTS, CSP and every other server-level header. Either repeat the security headers in those locations (an include snippet keeps that tidy), or on nginx 1.29.3+ set add_header_inherit merge;. Check with curl -I against a URL in each location.

server_tokens off hides the Nginx version. Minor. No upside to broadcasting it though.

The final two location blocks: cheap defense. If you do not run PHP, block .php requests. Block .env, .git, and .htaccess unconditionally. return 444 is Nginx-specific — drops the connection with zero response body. Faster than sending an error page to a bot, and it gives the scanner nothing to work with.

Before You Deploy

Before deploying: nginx -t passes. SSL Labs gives you an A. Your security headers are in place. Your logs go somewhere you'll actually check. Your rate limits will not lock out normal users. You can explain what every directive in your config does.

Done.
